Incoloy 800 Ball Valve

Home > Incoloy > Incoloy 800 Ball Valve

Jassem Tube Fittings, a reputed manufacturer and supplier in Doha, Qatar, offers high-performance flow control solutions such as the Incoloy 800 Ball Valve. Designed for demanding industrial environments, this valve delivers smooth operation, tight shut-off, and excellent durability. Jassem Tube Fittings combines precision engineering with strict quality standards to ensure reliable performance under high temperature and pressure conditions. The Incoloy 800 Ball Valve is valued for its corrosion resistance and long service life, making it a dependable choice for critical applications where safety, efficiency, and consistent flow control are essential.

Incoloy Alloy 800 2-Way Ball Valve Supplier in Doha, Incoloy 800 Ball Valves Price List in Al Rayyan, Incoloy 800 3-way Ball Valves Manufacturer in Al Wakrah, Incoloy 800 Ball Valves In Al Khor, Incoloy 800 Instrumentation Ball Valves, Incoloy 800 One-Piece Ball Valves Exporter in Al Rayyan, Incoloy 800 Instrument Ball Valve Manufacturer in Al Shahaniya, Incoloy 800 Ball Valve in Doha, Qatar.

The Incoloy 800 Ball Valve is manufactured from a nickel-iron-chromium alloy containing balanced amounts of nickel and chromium with controlled iron content. This composition provides excellent resistance to oxidation, carburization, and stress corrosion cracking. Mechanically, it offers good tensile strength, high creep resistance, and stable performance at elevated temperatures. The alloy maintains toughness and dimensional stability under thermal cycling, allowing the valve to perform reliably in harsh environments while reducing maintenance and replacement needs.

Incoloy 800 Ball Valve Specifications

SPECIFICATION	ASTM A494 / ASME SA494 API 602, ASME B16.34, SME B16.5, ASME B16.25, ASME B1.20.1, ASME B16.11, ASME B16.10, BS 5352, DIN3352
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Incoloy 800 Ball Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Incoloy 800 Ball Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

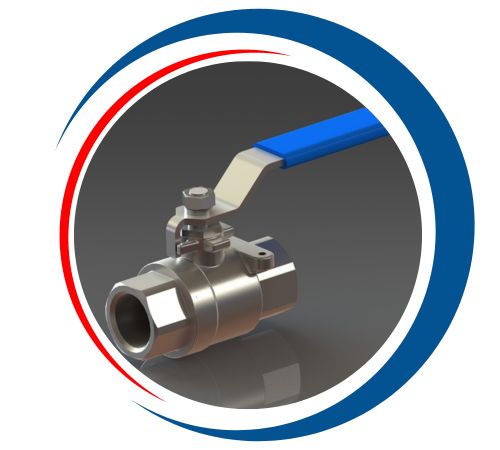

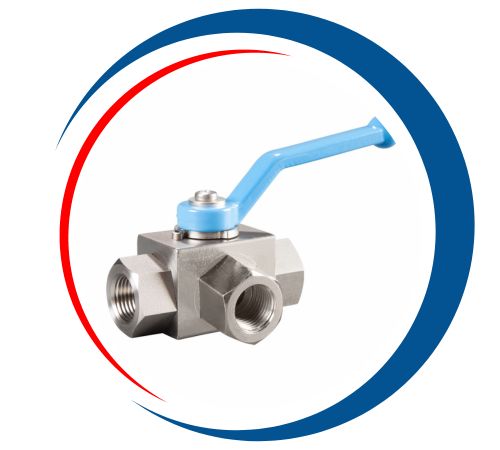

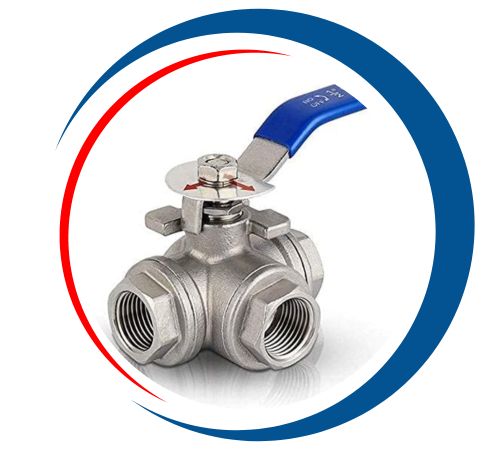

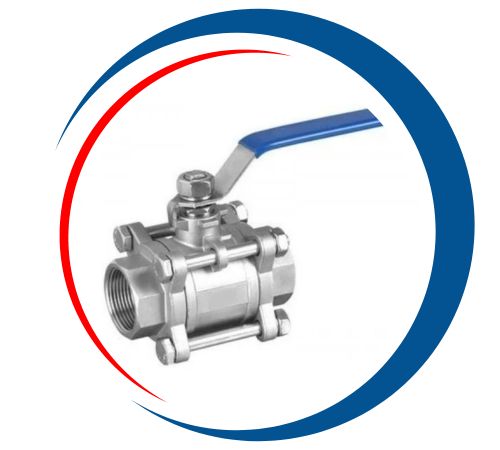

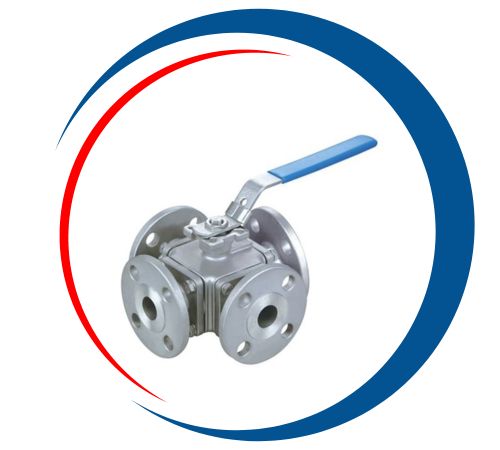

Types of Incoloy 800 Ball Valve

IIncoloy 800 Ball Valve Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Incoloy 800 Trunnion Ball Valve, Incoloy 800 Flanged Ball Valve, Incoloy Alloy 800 Swing Out Ball Valves Price in Doha, UNS N08800 Instrumentation Ball Valve Supplier in Al Rayyan, Incoloy 800 Lined Ball Valves Manufacturer in Al Wakrah, Incoloy 800 High Pressure Ball Valves Price in Al Khor, Incoloy 800 Three-piece Ball Valves Supplier And Manufacturer in Al Shahaniya, Incoloy 800 Flanged Ball Valve In Doha, Qatar.

Largest Manufacturer and Supplier of Incoloy 800 Ball Valve in Doha, Qatar

At Jassem Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy 800 Ball Valve in Doha, Qatar. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Qatar, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 800 Ball Valve Uses

Incoloy 800 Ball Valves are widely used in industries that operate under high temperatures and corrosive conditions. Typical applications include oil and gas processing, petrochemical plants, power generation facilities, and heat treatment equipment. They are also suitable for chemical processing, refineries, and thermal fluid systems. The valve’s ability to provide precise flow control and tight sealing helps improve system safety and efficiency, making it ideal for critical service lines where long-term reliability is required.
