Jassem Tube Fittings, a respected manufacturer and supplier in Doha, Qatar, provides high-performance Hastelloy Tube Fittings designed for the most demanding industrial environments. Known for their exceptional corrosion resistance and reliability, these fittings ensure secure, leak-free connections in critical piping and tubing systems. Jassem Tube Fittings emphasizes precision manufacturing, strict quality control, and adherence to international standards. Hastelloy Tube Fittings are ideal for applications involving aggressive chemicals, high temperatures, and high pressures, delivering long service life, reduced maintenance, and dependable performance where safety and efficiency are essential.
Hastelloy Tube Fittings are manufactured from nickel-based alloys containing chromium, molybdenum, and iron. This advanced composition provides outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking. Mechanically, the fittings offer high tensile and yield strength, excellent toughness, and strong creep resistance at elevated temperatures. They maintain dimensional stability and sealing integrity under pressure, vibration, and thermal cycling, ensuring consistent performance and long-term reliability in harsh service conditions.
| Hastelloy Tube Fittings specification (ASTM / ASME) | ASTM B366, ASME SB366 |
|---|---|
| Working Pressure | Up to 6,000 psi (based on severity of application) |
| Two-Ferrule Tube Fittings | Pressure Ratings : Up to 11 000 psig (760 bar) |
| Medium-Pressure, Gaugeable | Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C) |
| High-Pressure Hastelloy C276 Tube Fittings | Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Inconel 625 Tube fittings |
| Hastelloy Tube Fittings Special sizes | 22mm Hastelloy C276 tube fittings 25mm Hastelloy C22 tube fittings 32mm Hastelloy B2 tube fittings 50mm Hastelloy Ferrule tube fittings |
| Hastelloy Compression Fittings End Connections | Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
| Hastelloy C276 Tube Fittings Sizes | 1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm |
| Brand Name | Hastelloy Tube fittings |

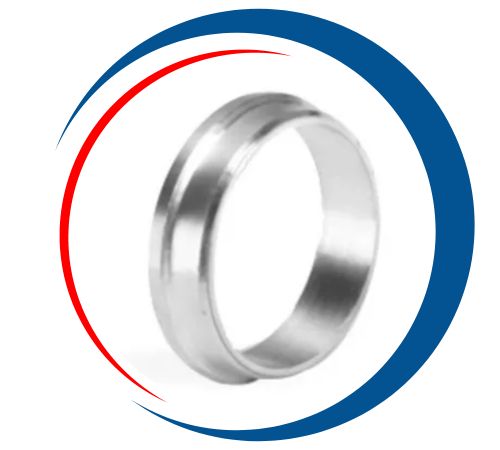

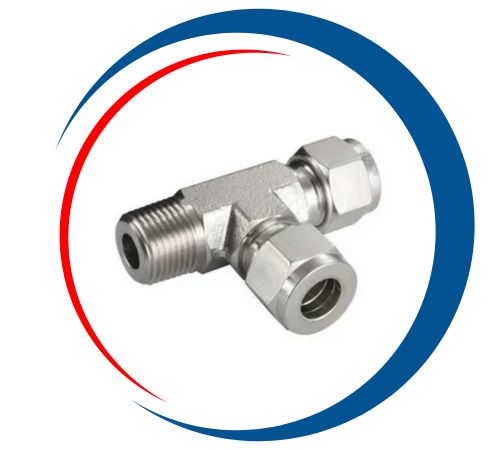

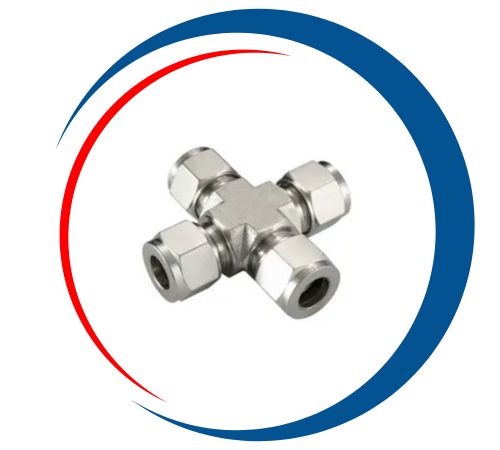

| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Types | Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs |
| Hastelloy Hydraulic Fittings Specification | Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564 |
| Tube Size | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Threads | NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc. |
| PTFE Standards | ASTM D1710, ASTM D3294 |
| Hastelloy Ferrule Tube Fittings Applicable Temperature | 150-400°C |
| Hastelloy C276 Tube Fittings Packing Details |
|
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
At Jassem Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hastelloy Tube Fittings in Doha, Qatar. Our advanced manufacturing facilities, strategically positioned in the Qatar, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| OD Size: 6mm to 38mm | Inch: 1/4″ to 1 1/2″ |
Contact us to get a quick quote for your requirement.
Jassem Tube Fittings is a leading supplier and stockist of premium Hastelloy Tube Fittings in Doha, Qatar. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
Hastelloy Tube Fittings are widely used in industries that handle corrosive fluids and operate under extreme conditions. Common applications include chemical processing plants, oil and gas facilities, petrochemical units, and power generation systems. They are also suitable for offshore platforms, fertilizer plants, and heat exchangers. By providing safe and durable connections, Hastelloy Tube Fittings help improve system reliability, reduce downtime, and enhance safety in critical process and instrumentation lines.
Please feel free to contact us if you need any further information or for enquiry.
