Inconel BSP / NPT Fittings

Home > Inconel > Inconel BSP / NPT Fittings

Jassem Tube Fittings is a well-respected manufacturer and supplier of high-performance piping components, based in Doha, Qatar. The company caters to a variety of industrial sectors by providing precision-engineered products that adhere to international quality and safety standards. The Inconel BSP / NPT Fittings offered by Jassem Tube Fittings are specifically designed for demanding applications where strength, corrosion resistance, and reliability are essential. Crafted using cutting-edge technology and rigorous quality control measures, these fittings guarantee leak-proof connections, a long service life, and outstanding performance even in extreme temperature and pressure conditions.

ASME SB564 Incoloy Alloy 800 BSP Screwed Plug Manufacturer Doha, Incoloy 800 NPT Screwed Cross Dealer Al Rayyan, Incoloy 825 MSS SP-83 NPT Thread Plugs Manufacturer Supplier Al Wakrah, 625 Inconel Alloy BSP Thread Cross Exporter In Al Khor, Incoloy Alloy 800HT BSP Equal Crosses Manufacturer Al Shahaniya, Alloy 718 BSP / NPT Cross In Doha, Qatar.

Inconel BSP / NPT Fittings are made from a nickel-chromium-based alloy that boasts a high nickel content, along with chromium and carefully controlled amounts of iron. This unique chemical makeup gives them remarkable resistance to oxidation, corrosion, and chloride stress corrosion cracking. On the mechanical side, the alloy provides impressive tensile and yield strength, exceptional toughness, and good creep resistance at elevated temperatures. It maintains its shape under thermal stress, shows excellent fatigue resistance, and keeps its mechanical integrity in both cryogenic and high-heat environments.

Inconel BSP / NPT Fittings Specifications

Specifications: ASTM B564/ ASME SB564
Size: 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Dimensions : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Types : Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating: Threaded End-2000lb/ 3000lb/ 6000lbs /
Socket-weld End-3000/ 6000/ 9000lbs
Thread: NPT, BSPT, BSPP

Inconel BSP / NPT Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel BSP / NTP	0.15 max	1.00 max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00

Inconel BSP / NPT Fittings Mechanical Properties

Element	Density	Melting Point	Tensilee Strength	Yield Strength (0.2%Offset)	Elongation
Inconel BSP / NTP	8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %

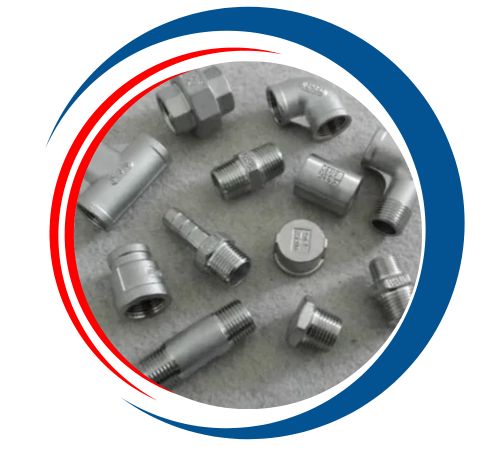

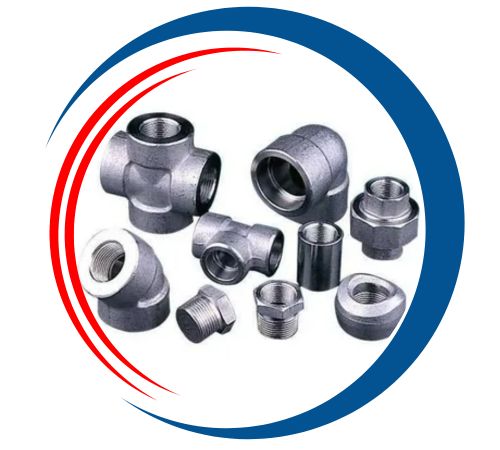

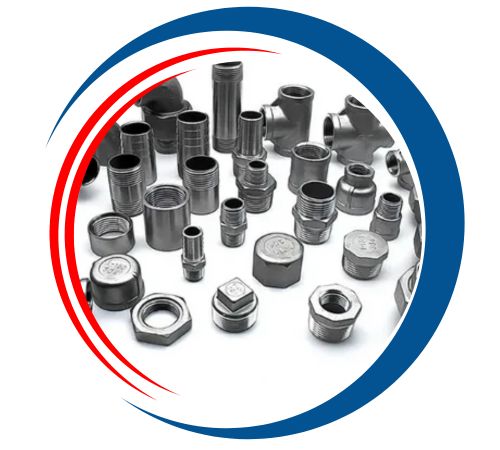

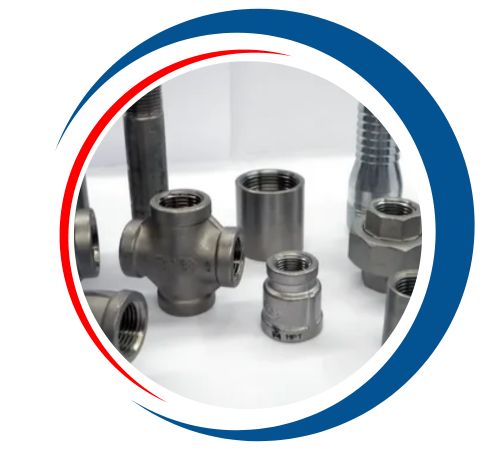

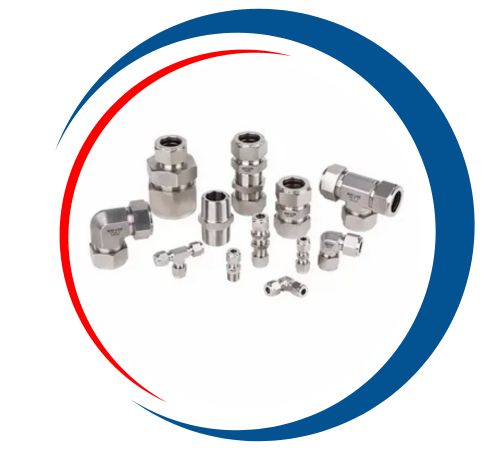

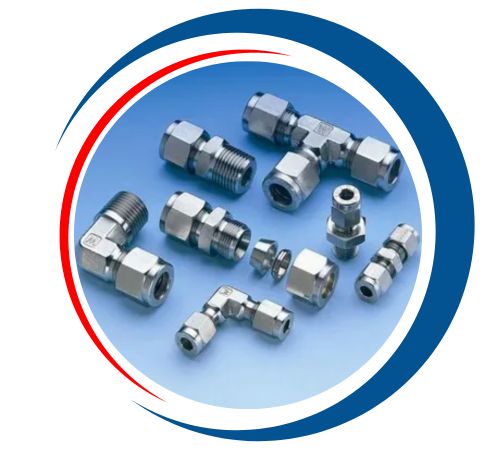

Types of Inconel BSP / NPT Fittings

Equivalent Grades of Inconel BSP / NPT Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 600	2.4816	N06600	NCF 600	NA 13	МНЖМц 28-2,5-1,5	NC15FE11M	NiCr15Fe
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb
Inconel 718	2.4668	N07718	–	–	–	–	–
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo

Alloy 600 BSP Threaded Plug Price in Doha, ANSI B16.11 Inconel 825 BSP Hex Head Plug Manufacturer Supplier in Al Rayyan, ANSI B16.11 Inconel 600 NPT x BSP Cross Manufacturer in Al Wakrah, ASTM B564 Incoloy Alloy 800 NPT Pressure Plugs Fittings Price in Al Khor, 800HT Incoloy NPT Threaded Union Supplier And Manufacturer in Al Shahaniya, 800 Incoloy Alloy MSS SP-83 NPT Thread Union In Doha, Qatar.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Inconel BSP / NPT Fittings in Doha, Qatar

At Jassem Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Inconel BSP / NPT Fittings in Doha, Qatar. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Qatar, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Inconel BSP / NPT Fittings Uses

Inconel BSP / NPT Fittings are extensively utilized in industries that demand strong, corrosion-resistant threaded connections. Common applications include oil and gas processing, chemical and petrochemical plants, power generation facilities, marine systems, and heat exchanger assemblies. These fittings are perfect for managing aggressive chemicals, high-pressure fluids, and high-temperature media. You’ll often find them in piping systems, instrumentation lines, hydraulic systems, and steam services. Their reliability and durability make them a go-to choice for critical applications across various sectors.
